The VIP Thermos Box Insulated Panel Box is an advanced solution designed for the efficient and reliable transportation and storage of temperature-sensitive goods. Using Vacuum Insulated Panels (VIPs), this box offers superior thermal insulation properties, ensuring that contents remain at the desired temperature for extended periods, even in extreme environments. It is an ideal choice for industries that require cold-chain logistics, such as food, pharmaceuticals, and medical supplies.
Item No :
8418402900Order(MOQ) :
50SETPayment :
100%T/TProduct Origin :
CHINAColor :
customisationShipping Port :
NINGBOLead Time :
7-15days for Production| Item Name | Capacity | Outer diameter size (mm) |
inside diameter (mm) |
Form | Insulation range (ºC) |
Insulation duration (h) |
| EPP cool box | 6L | 360*360*380 | 185*185*185 | EPP+VIP+PCM | 2-8 | 96+ |
| 8L | 450*350*350 | 290*185*185 | EPP+VIP+PCM | 2-8 | 96+ | |
| 12L | 400*405*410 | 230*230*230 | EPP+VIP+PCM | 2-8 | 96+ | |
| 28L | 470*470*470 | 315*315*315 | EPP+VIP+PCM | 2-8 | 96+ | |
| 60L | 600*600*600 | 400*400*400 | EPP+VIP+PCM | 2-8 | 96+ | |
| 18LE | 454*454*454 | 266*266*266 | Oxford bag+EPP+VIP+PCM | 2-8 | 110 | |
| 10.5L E | 454*454*454 | 218*218*218 | Oxford bag+EPP+VIP+PCM | 2-8 | 120 | |
| 13.5L E | 454*454*454 | 238*238*238 | Oxford bag+EPP+VIP+PCM | 2-8 | 85 | |
| Pallet box | 1840L | 1520*1433*1588 | 1256*1201*1222 | Oxford bag+EPP+VIP+PCM | 2-8 | 180 |
| Item Name | Capacity | Outer diameter size (mm) |
inside diameter (mm) |
Form | Insulation range (ºC) |
Insulation duration (h) |
| PP cool box | 125L | 735*725*750 | 515*515*500 | PP+VIP+PCM | 2-8 | 96+ |
| 160L | 740*730*860 | 515*515*600 | PP+VIP+PCM | 2-8 | 96+ | |
| 18L D | 440*440*420 | 266*266*266 | PP+VIP+PCM | 2-8 | 120+ | |
| 18L DC | 410*420*410 | 266*266*266 | Oxford bag+pp+vip+pcm | 2-8 | 125+ |
Product Description
Products Application
FAQ
1. what is your MOQ?
we can accept any order for any different projects. Price depends on quantity
2.Can we have a visiting to your factory?
Sure! Warmly welcome to visit us.
3.what's the lead time?
Generally it is 7-15 days, or shorter, if the goods are in stock. Or it is 15-30 days, it is according to quantity.
Recommended
The lower the thermal conductivity value, the better the insulation performance. In this discussion we would like to address the use of vacuum insulation panels in the transport of food and beverage when we go for outdoor picnic or other family activities. VIP is able to preserve the food for the whole day without any electricity. Lightweight VIP ensures the man-carried camping boxes lightweight for long-distance activities. Ice pack or cold water from refrigerator can be used as refrigerant, easy to handle and take away.
Read More
The VIP Thermos Box Insulated Panel Box is an advanced solution designed for the efficient and reliable transportation and storage of temperature-sensitive goods. Using Vacuum Insulated Panels (VIPs), this box offers superior thermal insulation properties, ensuring that contents remain at the desired temperature for extended periods, even in extreme environments. It is an ideal choice for industries that require cold-chain logistics, such as food, pharmaceuticals, and medical supplies.
Read More

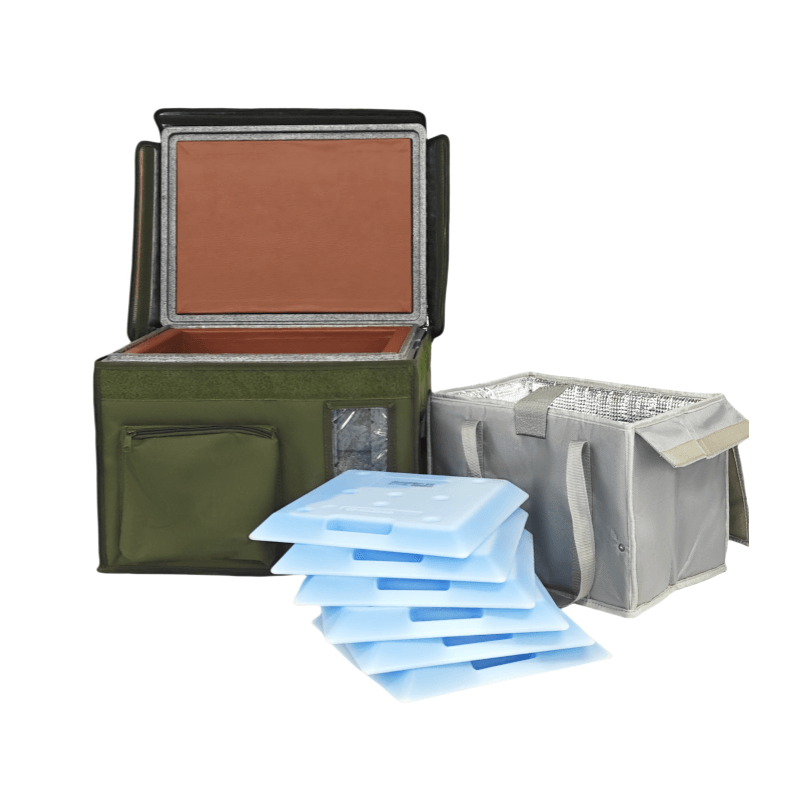

Our cold chain box with oxford bag, beautiful and elegant, sturdy and durable; is widely using in medical transport. we have 6L, 8L, 12L, 28L, 60L to meet different customers. Phase material and VIP panel also can be customized acc to customers' demands. Features: Use in combination with ice board, it can extend the heat preservation time and effectively keep food fresh. VIP material is packaged in a vacuum state as a inner material with a very strong heat insulating property, the thermal conductivity is lower than 0.003w/m.k., match PCM phase change material can control the temperature precisely for 120H without power supply, this can greatly simplify operating, reduce labor costs. Thermal Insulation transportation (+35~-20 ºC or -20 ~+35 ºC) -50ºC ~ -30ºC -20ºC ~ -10ºC -25ºC ~ -15ºC 0 ºC ~ +5ºC +2ºC ~ +8ºC +15ºC ~ +25ºC Heat preservation time: 24H-120H 2.Logo printing customization: yes 3.Construction: a:Internal isolated; b:ice bricks; c:Incubator; d:External protector;
