K 200 is a form of high performance insulation material mainly made of nano-porous fumed silica, applicable to medium and low temperature environment. Vacuum insulation panel (VIP) made of K 200 core material is able to reach thermal conductivity as low as 0.004W/m.K as one of the best insulation materials worldwide at present.
Item No :
680610Order(MOQ) :
1000 PiecesPayment :
T/T 100%Product Origin :
ChinaColor :
SilveryShipping Port :
ShanghaiLead Time :
30 DaysWeight :
Customizesize :
CustomizeFumed Silica Core-K200/K200Pro
The VIP made of K 200 offers the longest service life compared to all other availablecore materials. K 200 core material possesses the best performance applied to wider temprature range. Ecotherm can offer different options including K 200, K 200 pro and customized cores.
TECHNICAL DATA
| Product Model | K200 | K200Pro |
| Initial Thermal Conductivity (W/m·K) | ~0.022 | ~0.020 |
| Specific Heat Capacity (KJ/kg·K) | ~0.9 | ~0.8 |
| Thickness Shrinkage after Vacuum | ~5% | ~5% |
|
Non Combustibility Test Classification DIN ISO 4102 |
A1 | A1 |
DIMENSIONS
| Length and Width | 1000*600mm 1200*600mm |
| Thickness | 5~50mm |
| Customize |
PACKING OPTIONS

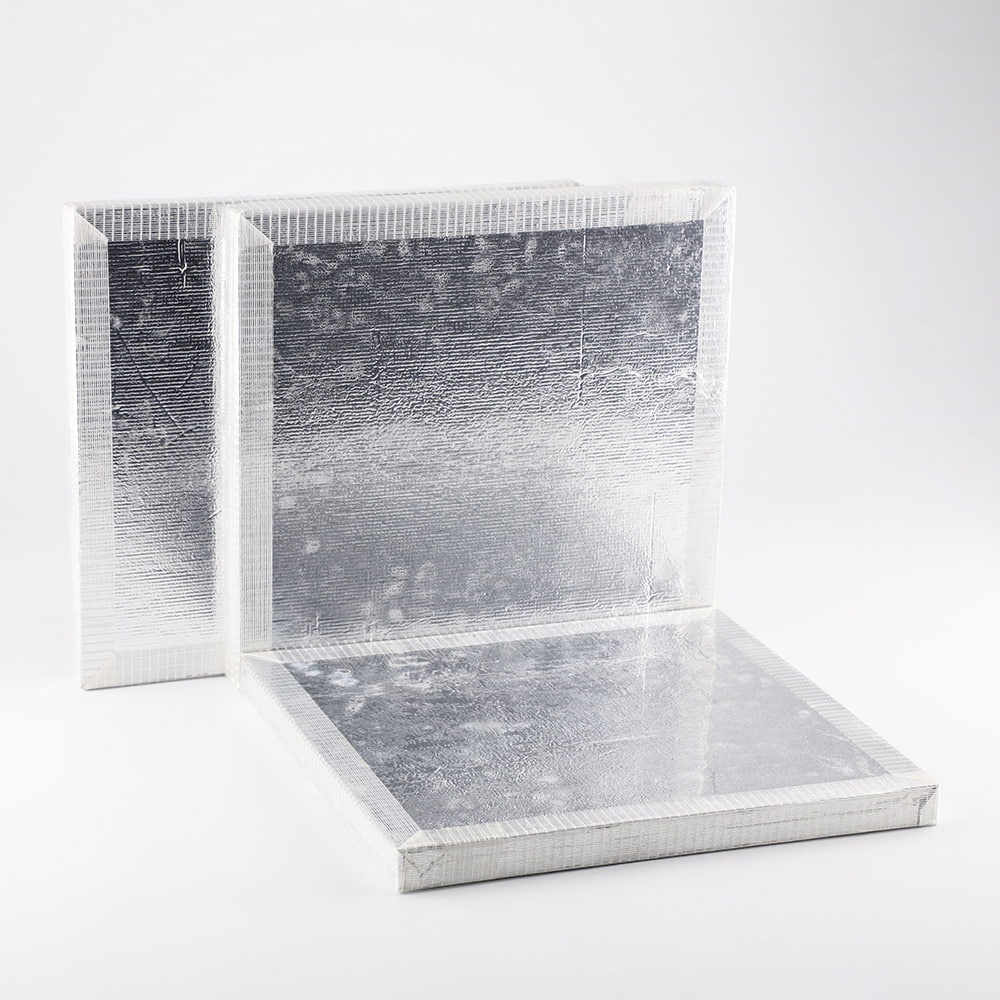

APPEARANCE
APPLICATIONS
WAREHOUSE SHOW
FAQ
1.Why Choose us?
2.What kind of payment do you support?
Normally we support T/T 100% in advance, can be negotiated
