Fumed silica VIP is a high performance insulation material made of fumed silica core and metallized film. At present, VIP is one of the best insulation materials worldwide. The thermal conductivity of fumed silica VIP can reach as low as 0.004W/m·K.
Item No :
680610Order(MOQ) :
1000 PiecesPayment :
T/T 100%Product Origin :
ChinaColor :
SilveryShipping Port :
ShanghaiLead Time :
30 DaysWeight :
Customizesize :
CustomizeFumed Silica VIP
Fumed Silica VIP is applicable to thermal insulation between -100℃and 80℃ with extremely slow aging rate. It has longer service life and more stable performance. Vactherm is able to offer optional performance products according to customer's requirements and conditions of use to provide the most cost-effective VIP solution.
TECHNICAL DATA
| Product Model | Standard Fumed Silica VIP | High Performance Fumed Silica VIP |
| Initial Thermal Conductivity W/m·K | ~0.0045 | ~0.004 |
| Film Material | Metalized Film | Metalized Film |
| Service Life | ~50 Years | ~50 Years |
| Expansion Rate after Vacuum Loss | ~5% | ~5% |
| Appearance | Flat Surface,High Rectangularity | Flat Surface,High Rectangularity |
DIMENSIONS
| Length and Width | 200~1500mm |
| Thickness | 5~50mm |
| Customize |
PACKING OPTIONS

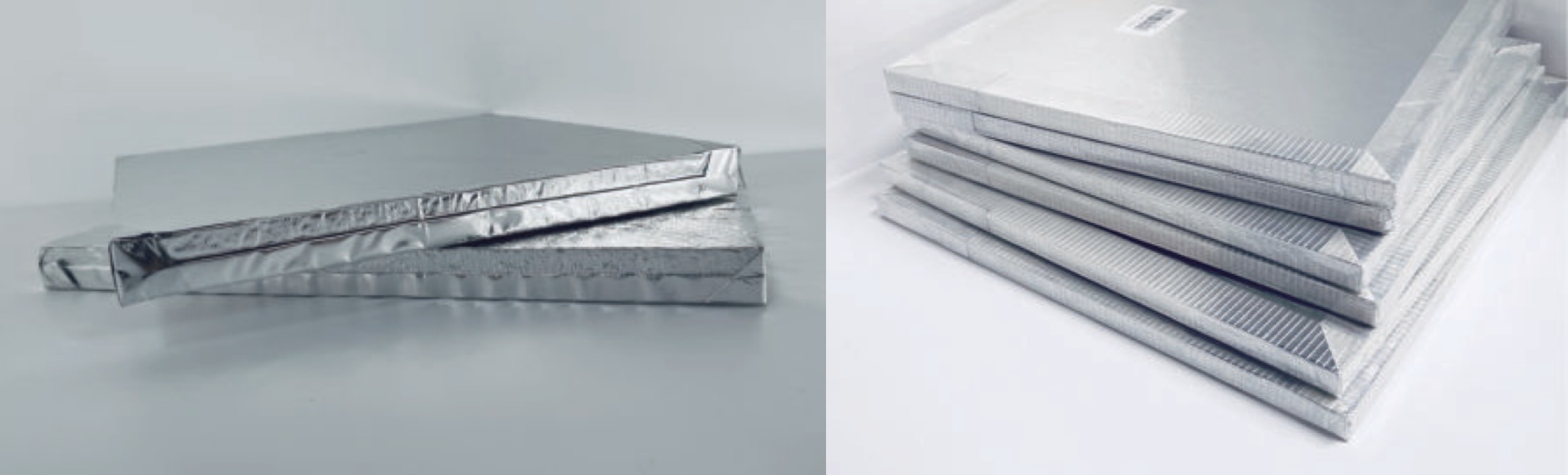

APPEARANCE
APPLICATIONS

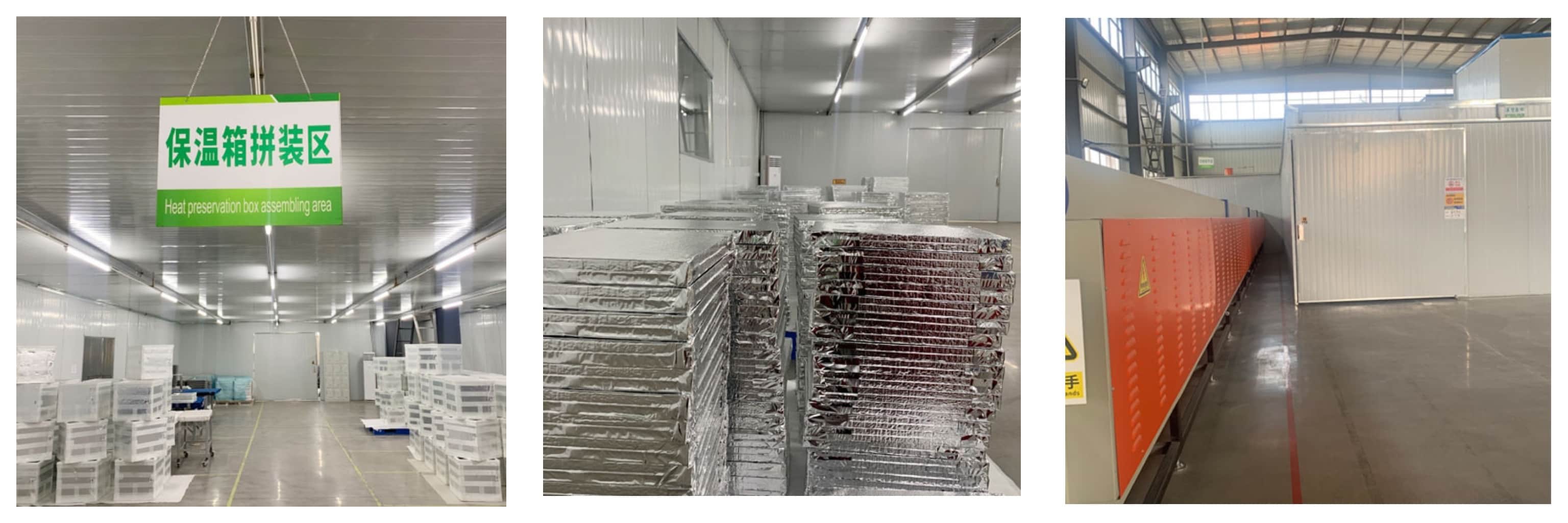

WAREHOUSE SHOW
FAQ
1.Why Choose us?
2.What kind of payment do you support?
Normally we support T/T 100% in advance, can be negotiated
